Discover DRACONAV and ULTRADRACONAV, two high performances GNSS for applications requiring Security and Confidence.

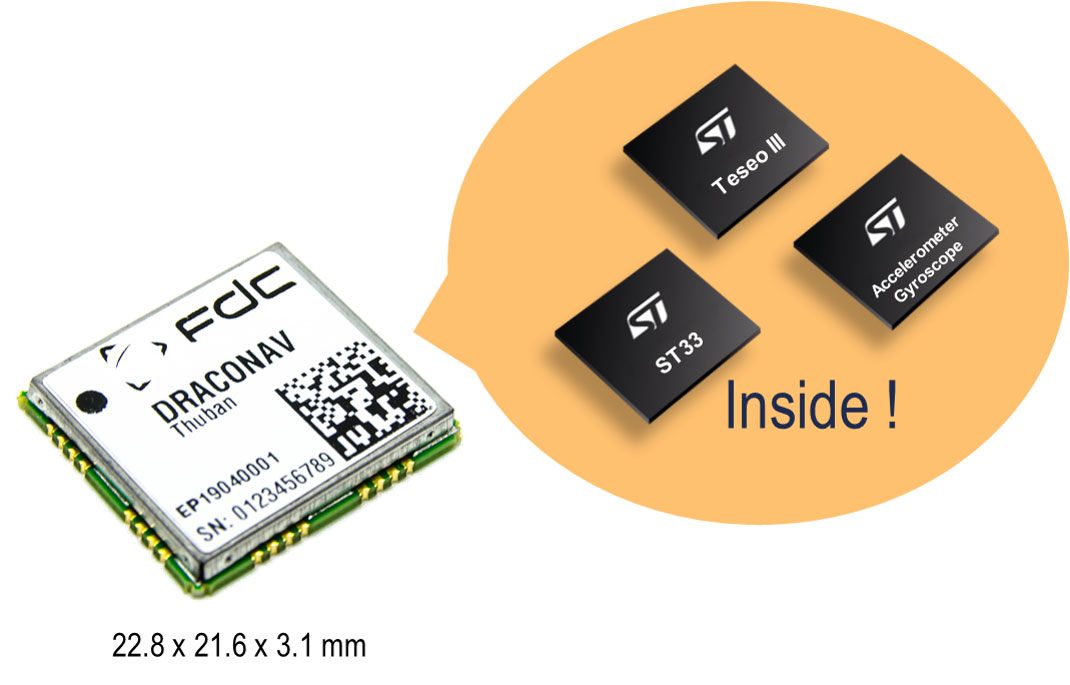

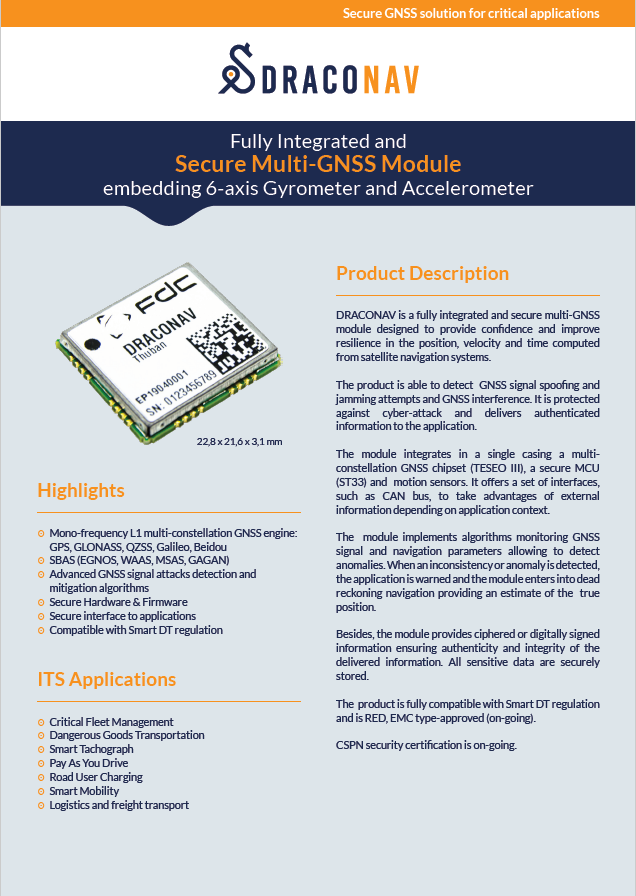

DRACONAV is a fully integrated and secure multi-GNSS module designed to provide confidence and improve resilience in the position, velocity and time computed from satellite navigation systems.
The module implements algorithms monitoring GNSS signal and navigation parameters allowing to detect anomalies. When an inconsistency or anomaly is detected, the application is warned and the module enters into dead reckoning navigation providing an estimate of the true position.
DRACONAV is protected against cyber-attack and delivers authenticated information to the application. It provides ciphered or digitally signed information ensuring authenticity and integrity of the delivered information. All sensitive data are securely stored.
The product is fully compatible with Smart DT regulation and is RED, EMC type-approved.
T&S
ITS
ITS
TRAIN
T&S
ITS
ITS
TRAIN
T&S
ITS
ITS
TRAIN

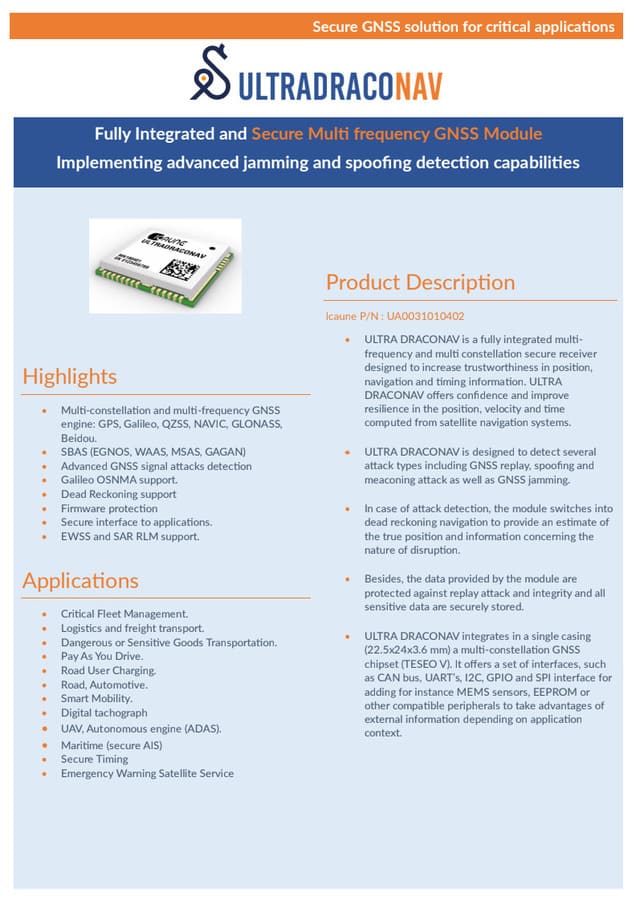

ICaune is offering a brand-new compact surface mount GNSS module called ULTRADRACONAV. This state-of-the-art solution is designed to increase trustworthiness in Position Navigation and Timing information. The ICaune module is designed to detect GNSS spoofing and jamming events and mitigate these effects.
The module is a multiband multi-constellation positioning GNSS receiver. It supports a broad range of frequency bands:
Additionally, it supports augmentation systems such as SBAS WAAS (United States), EGNOS (Europe), MSAS (Japan and Southeast Asia), and GAGAN (India).
The ULTRADRACONAV module supports also:
It integrates an embedded 6-axis gyrometer and accelerometer. When inconsistencies or anomalies are detected, the module warns the application and switches to dead reckoning navigation, delivering an estimate of the true position.

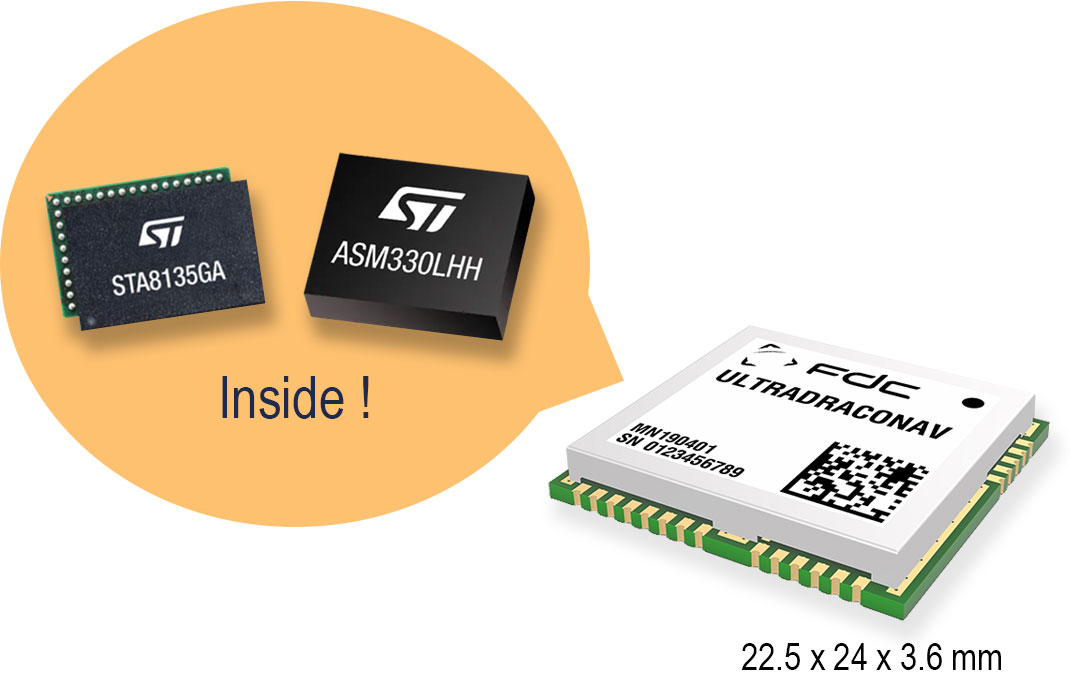

The module, with dimensions of 22.5 x 24 x 3.6 mm, is allowing firmware upgrades and specific configuration options, ensuring adaptability to various applications. It incorporates a multi-constellation GNSS chipset (TESEO V) within a single casing and offers a wide range of interfaces, including CAN bus, UARTs, I2C, SPI and GPIO.
These interfaces enable the addition of peripherals such as MEMS sensors, EEPROMs, or other compatible components to enhance functionality based on application requirements.
ULTRADRACONAV is a multi-frequency and secure multi constellation trusted receiver increasing trustworthiness in position, navigation and timing information.
The module implements algorithms that monitor GNSS signals and navigation parameters, allowing the detection of anomalies. The module is engineered to detect various attack types.
Upon identifying an inconsistency or anomaly, the application is notified, and the module transitions to dead reckoning navigation, providing an estimated true position along with details about the nature of the disruption.
ULTRADRACONAV is protected against cyber-attack and could deliver authenticated or ciphered information to the application. Moreover, all sensitive data are securely stored into the module.
The product is fully compatible with Smart Digital Tachograph regulation and is RED, EMC type-approved.
T&S
ITS
ITS
TRAIN
T&S
ITS
ITS
TRAIN
T&S
ITS
ITS
TRAIN
If you need further information about the ICaune solutions that we can offer , feel free to contact us at

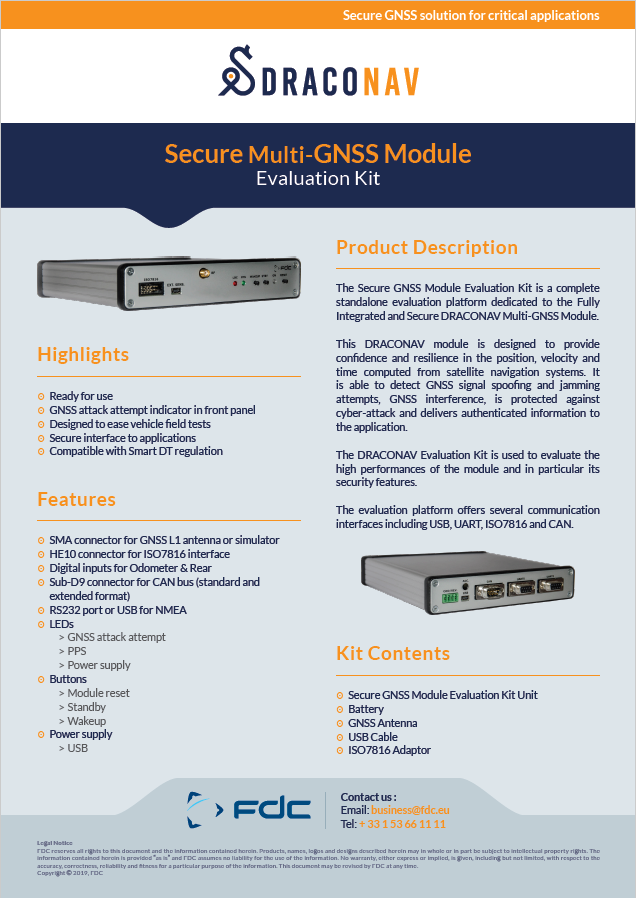

Evaluation Kit (EVK) available
